Term Plus™ Serial Terminal Program

• The TERM Plus™ Program is a windows based Serial Terminal and page editor. The Program is designed for use with Computer Weld Technology, Inc.’s (CWT) Weld Controllers.
• It incorporates a Page Editor and an RS-232 serial terminal program. The Page Editor may be used to generate PLC or Script text files that can be used to program the various CWT Weld Controllers.

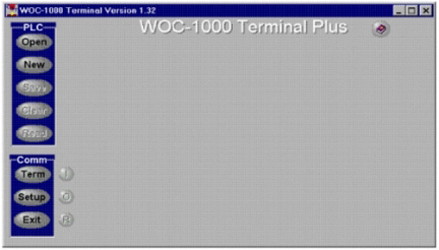

• All of the TERM Plus™ features are controlled from the Main Window. There are eleven Speed Buttons located on the left side of the screen, which are used to invoke the various program functions. A twelfth button is located on the top right of the Window. This is the Help Button and is used to invoke the TERM Plus™ help window.
• To activate a specific function, move the mouse over the desired speed button and press the left mouse button. To Exit the TERM Plus™ Window, press the “Exit” speed button. When the mouse cursor is moved over the speed buttons a brief description of the Speed Button function will appear.
