| WSC-1000™
Weld Sequence Controller |
- The
microprocessor based Weld Sequence Controller is comprised
of a WSC-1000™ Controller and a WRC-1000™ weld
remote Interface. The WSC-1000 is the main control module
and provides all control and communication functions and
can program external motion control axis via the Local Area
Network {LAN} port. The controller can support up to four
stepper motor controlled axes, using the MSC-1000 Micro-Step
Controller, and four DC Servo controls, using the DMC-1000
DC Servo Controller.
- The
WRC-1000 provides all external Input/Output control interface
and electrical connections to the user supplied components.

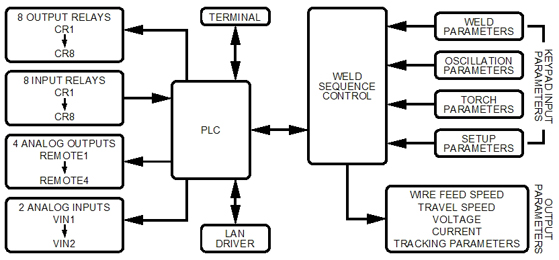

The WSC-1000 consists of two major control systems. The
first is a Programmable Logic Controller {PLC} and the second
is the Weld Sequence Controller {WSC}. The PLC is the main
controlling element and provides the interface between the
WSC and the external I/O functions. The PLC is configured
by using the terminal serial port. The user can define up
to 150 sequences that will be executed by the specified
switch inputs. The WSC control provides all of the weld
control functions and can be programmed for up to 40 weld
schedules via the 16 key keypad or terminal serial port.
- WELDSEQ
Plus™ Software is a product of Computer Weld Technology,
Inc. and is designed to operate in conjunction with our
WSC-1000™ and MWC™ weld sequence controllers.
The program provides a serial communications program, which
is used to communicate with the WSC-1000/MWC and program
the Programmable Logic Controller (PLC) and configuration
parameters. The program provides a full function, user configurable
ASCII terminal program, which can be used to configure all
of the WSC/MWC functions. It provides weld data collection
routines that allow the user to collect run-time weld data
and store this data for future analysis. The WSC/MWC weld
schedules can be edited and include a Weld Setup specification
sheet, which is used to save process specific information
for the current weld schedule. The program also provides
a PLC editor, which can be used to generate custom PLC programs.
|
|
|

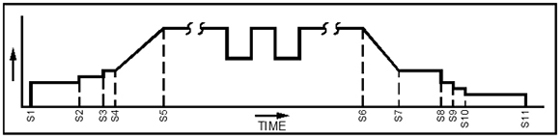

WELD
SEQUENCE EVENTS |
- S1
= Cycle Start
- S1
- S2 = Prepurge Gas Flow Time
- S2
- S3 = Arc Start Parameter Time
- S3
- S4 = Arc Active Delay Time
- S4
- S5 = Ramp Time
|
- S5
- S6 = Weld Time (spot or manual)
- S6
- S7 = Ramp Down
- S7
- S8 = Crater Fill Parameter Time
- S8
- S9 = Wire Retract Time
- S9
- S10 = Burn Back Time
- S10
- S11 = Post Purge Time
|
|
 |
|
WSC-1000
WELD SEQUENCE CONTROLLER - MECHANICAL SPECIFICATIONS
|
| Dimensions |
4"
H X 6.5" W X 11" L (102mm X 165mm X 280mm) |
| Weight |
5.5
lbs. (2.49kg) |
| Power
Requirements |
110/240
vac 50/60 Hz @ 0.2kw |
| Operating
Temperature |
-10°
F to +140° F (-23° C to +60° C) |
|
WRC-1000
WELD REMOTE CONTROLLER - MECHANICAL SPECIFICATIONS
|
| Dimensions |
2"
H X 6.5" W X 11" L (51mm X 165mm X 280mm) |
| Weight |
1.3
lbs. (0.589kg) |
| Power
Requirements |
24
vac @ 1.0 amp (supplied by WSC) |
| Operating
Temperature |
-10°
F to +140° F (-23° C to +60° C) |
|
|
| |
|
| FEATURES |
- User
definable configuration
- RS-232
Serial Port
- Flexibility
to adapt to most solid state equipment
- Ease
of set-up
|
|
| BENEFITS |
- 40
Weld Schedules and 150 PLC Sequences are user programmable
- Permits
off-line programming, system configuration and remote control
- Permits
user to employ existing equipment in many cases
- Welding
Parameters displayed while welding using optional remote
pendant
- Automatically
recognizes installed peripheral devices
|
|
| PROGRAMMABLE
PARAMETERS |
- Prepurge
Gas Flow Time
- Arc
Start Parameter Time
- Arc
Active Delay Time
- Ramp
Up Time
- Weld
Time (spot or manual)
- Ramp
Down Time
- Crater
Fill Time
- Wire
Retract Time
- Burn
Back Time
- Post
Purge Time
- Pulse
On Time*
- Pulse
Off Time*
- Background
Wire Feed Speed* (*For Pulse TIG Applications)
|
|
|
