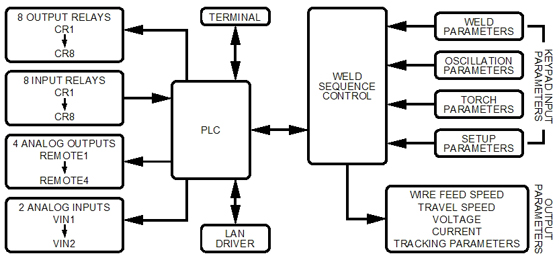

The microprocessor based Modular Weld Controller is the main control module and provides all control and communication functions and can program external motion control axis via the Local Area Network (LAN) port.

The controller can support up to four stepper motor controlled axis, using the MSC-1000™ Micro-step Controller, and four DC servo controls, using the DMC-1000™ DC Servo Controller.

The MWC-1000™ provides all external Input / Output control interface and electrical connections to user supplied components.

The MWC-1000 consists of two major control systems. The first is a Programmable Logic Controller (PLC) and the second is the Modular Weld Control (MWC). The PLC is the main controlling element and provides the interface between the MWC and the external I/O functions. The PLC is configured by using the terminal serial port. The user can define up to 150 sequences that will be executed by the specified switch inputs. The MWC control provides all of the weld control functions and can be programmed for up to 40 weld schedules via the terminal serial port or remote pendant port.



User definable configuration

RS-232 Serial Port

Flexibility to adapt to most solid state equipment

Ease of set-up



40 Weld Schedules and 150 PLC Sequences are user programmable

Permits off-line programming, system configuration and remote control

Permits user to employ existing equipment in many cases

Welding Parameters displayed while welding using optional remote pendant

Automatically recognizes installed peripheral devices



Prepurge Gas Flow Time
Arc Start Parameter Time
Arc Active Delay Time
Ramp Up Time
Weld Time (spot or manual)
Ramp Down Time
Crater Fill Time
Wire Retract Time
Burn Back Time
Post Purge Time
Pulse On Time*
Pulse Off Time*
Background Wire Feed Speed* (*For Pulse TIG Applications)

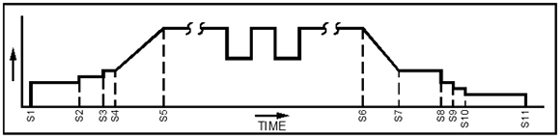

S1 = Cycle Start   S6 - S7 = Ramp Down
S1 - S2 = Prepurge Gas Flow Time   S7 - S8 = Crater Fill Parameter Time
S2 - S3 = Arc Start Parameter Time   S8 - S9 = Wire Retract Time
S3 - S4 = Arc Active Delay Time   S9 - S10 = Burn Back Time
S4 - S5 = Ramp Time   S10 - S11 = Post Purge Time
S5 - S6 = Weld Time (spot or manual)





The optional WELDSEQ Plus™ Software is a product of Computer Weld Technology, Inc. and is designed to operate in conjunction with our WSC-1000™ and MWC™ weld sequence controllers. The program provides a serial communications program, which is used to communicate with the WSC-1000/MWC and program the Programmable Logic Controller (PLC) and configuration parameters.

The program provides a full function, user configurable ASCII terminal program, which can be used to configure all of the WSC/MWC functions. It provides weld data collection routines that allow the user to collect run-time weld data and store this data for future analysis.

The WSC/MWC weld schedules can be edited and include a Weld Setup specification sheet, which is used to save process specific information for the current weld schedule. The program also provides a PLC editor, which can be used to generate custom PLC programs.


Product Specifications






  • Mechanical
  • Electrical

Dimensions 4" H X 16.50" W X 9" L (102mm X 419mm X 229mm)
Weight 8 lbs. (3.6 kg)

Power Requirements 110/240 vac 50/60 Hz @ 8 amp
Operating Temperature -10° F to +140° F (-23° C to +60° C)
