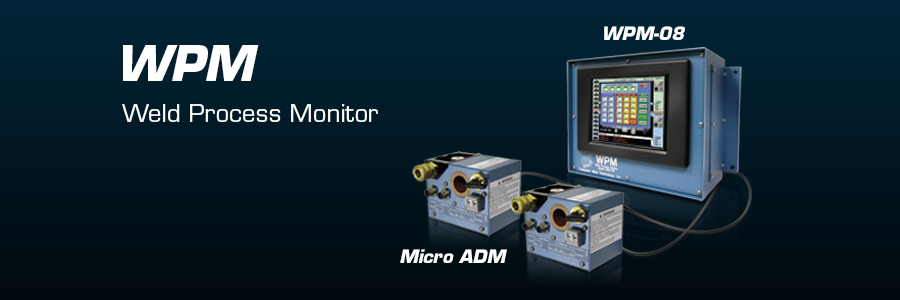

The Weld Process Monitor (WPM™) is a Industrial Touch Screen Computer based system combined with the Micro ADM Weld Monitor to provide single point continuous data acquisition and weld monitoring for quality control of critical welding operations.

The Micro ADM™ Transducer includes an embedded micro-controller to provide the necessary data acquisition, signal processing and communications firmware to allow remote logging and testing of the following basic welding parameters: Arc Current, Arc Voltage, Wire Feed Speed and Shielding Gas Pressure.

The WPM™ can be configured with a 8.4”, 10.4” or 12.1” touch screen LCD that supports 800 x 600 SVGA resolution.

It can be employed as a stand-alone unit or it can be connected via ethernet to a network for remote/ethernet access.



Network: Single Realtek RTL 8139B 10/100 Ethernet
Dual USB ports
1 - RS-485 port for communication to host PLC or ROBOT
Dual Micro ADM RS-485 serial interface connections
Micro ADM Status Panels and Limit Configuration Windows
Micro ADM Weld Data display window and Graphing Function
Monitoring, Limit Testing and logging of Voltage, Current, Wire Feed Speed and Gas Pressure data
Weld Trend DATA for Statistical Process Control Graphing Function
Three Levels of Fault notification (Parameter, Weld, Part)
Seven days storage of Weld Trend Data and Fault Data
E-Mail/Text Message Notification of Fault Data (WPM must have Ethernet connection with POP3 and STMP server for this feature)
Compact, versatile, rugged and lightweight design
Customized Monitor display of Part with PASS/FAIL weld flag(s) (Photo of Part and Weld Locations provided by customer)



Provides continuous weld monitoring and data collection

Instant Visual Notification of Parameter, Weld and Part PASS or FAIL

Single point user password protected access to Micro ADM(s)

Direct connect to user Ethernet for remote access

Simplified data acquisition and storage using Microsoft Excel® file format

Provides documentation and data trend analysis relating to the welding process on a
non-invasive basis

Easily installed in new or existing applications

Provides versatility and flexibility for installation







Product Specifications







  • Mechanical
  • Touch Screen

Dimensions 5.125”H X 9.5”W X 14.25”L (76mm X 165mm X 280mm)
Weight 9.5 lbs (4.3kg)
Power Requirements 115 VAC or 220 VAC 50/60 Hz @ 1 amp
Communications Realtek RTL 8139B 10/100 Ethernet port, Dual USB ports
Display 8.4”/10.4”/12.1” Touch Screen LCD supports 800 x 600 SVGA resolution

Type 4-wire resistive
Resolution 800 x 600
Transparency >= 81%
Light Transmission None
Lifetime >1 million touches
Scratch Resistance >= 3H
Interface RS-232
OS support Windows CE
